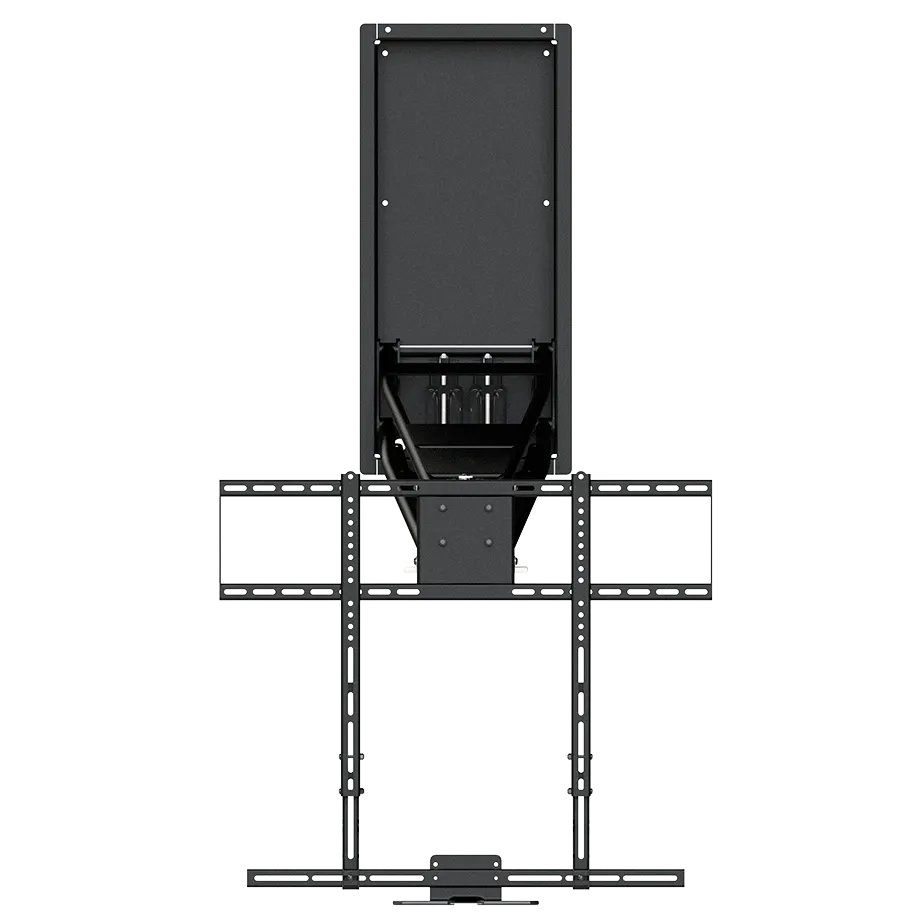

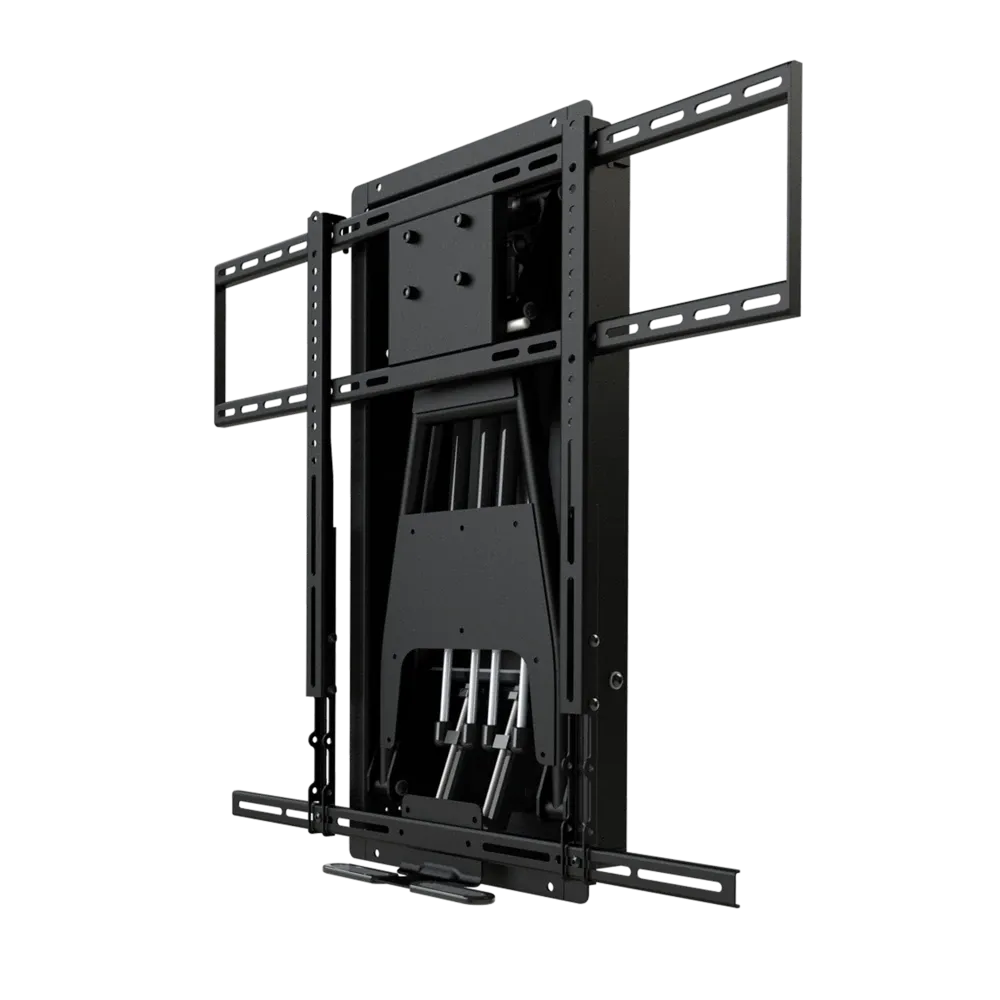

MM750 Pro Pull Down TV Mount

Product Description


The award-winning MantelMount presents the new MM750, the second iteration in its Pro Series Manual Pull Down TV Mount line. This mount was deigned to handle larger, heavier TV's through a combination of higher grade steel, the use of four top echelon gas pistons instead of two, enhanced torsion rigidity, and a tubular tapered lifting arm. That MM750 provides an even smoother full range motion than its MM700 predecessor, increased off-the-wall and vertical travel distances, enhanced leveling for post-install leveling adjustments AND "Stop Anywhere Positioning" along the downward path of travel. The MM750 also comes standard with a solid steel housing that conceals the lifting arm when in the raised position. The housing can be surface mounted or recessed for 1.8 inch flush-to-wall TV storage. This Pro model is for home theater connoisseurs who only want the finest in everything. Specifications: TV Weight Capacity-30 to 125 lbs. TV Size Minimum-55"-100". VESA Compatibility-Up to 600mm x 600mm.

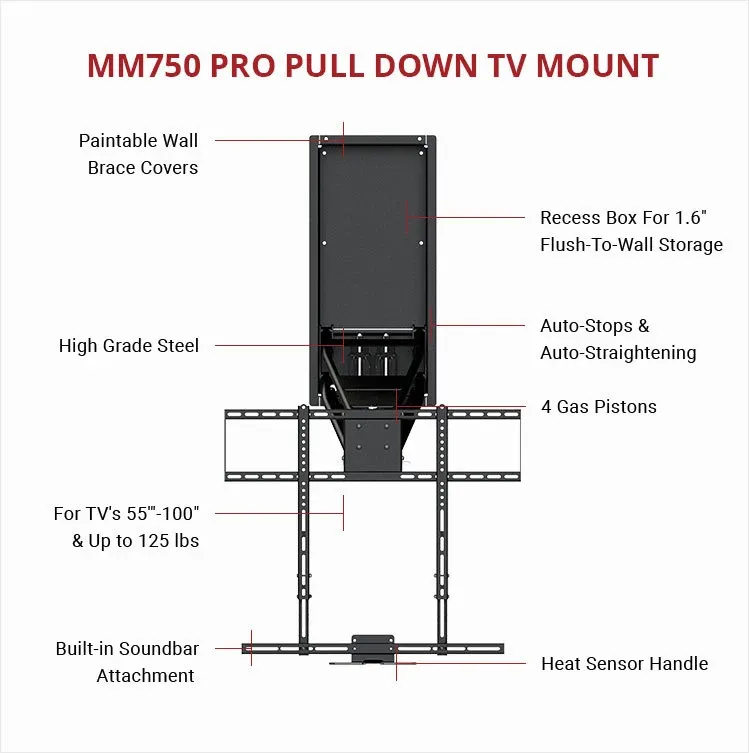

Features:

  • Heavy Duty Construction (3.5-5MM Steel)
  • (4) Automotive Gas Pistons
  • Tubular Tapered Lifting Arm
  • Enhanced Torsion Rigidity
  • Enhanced Leveling
  • Enhanced Stabilization
  • Built-in Sound Bar Attachment
  • Heat Sensing Pull Down Handles
  • Paintable Brace Covers
  • Adjustable Stops & Auto-Straightening

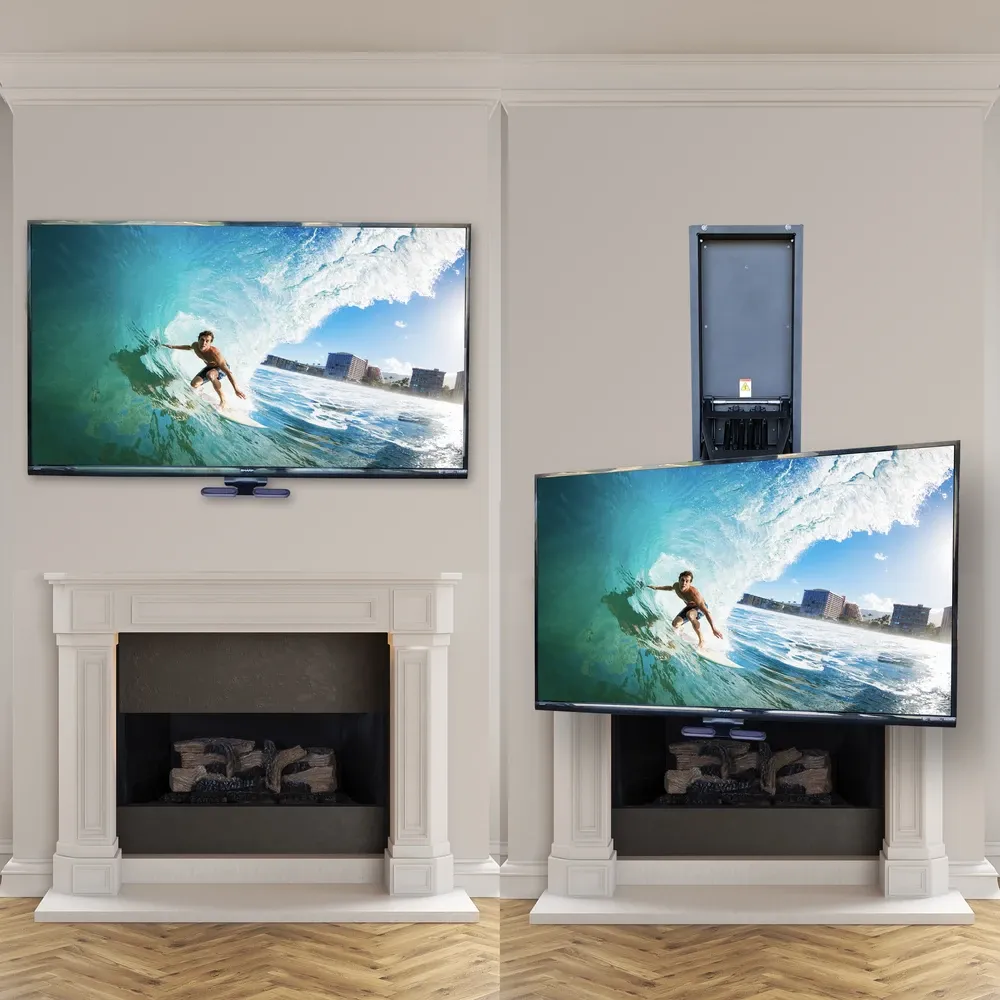

  • 29"-30.5" Vertical Travel, 25° Swivel In Each Direction

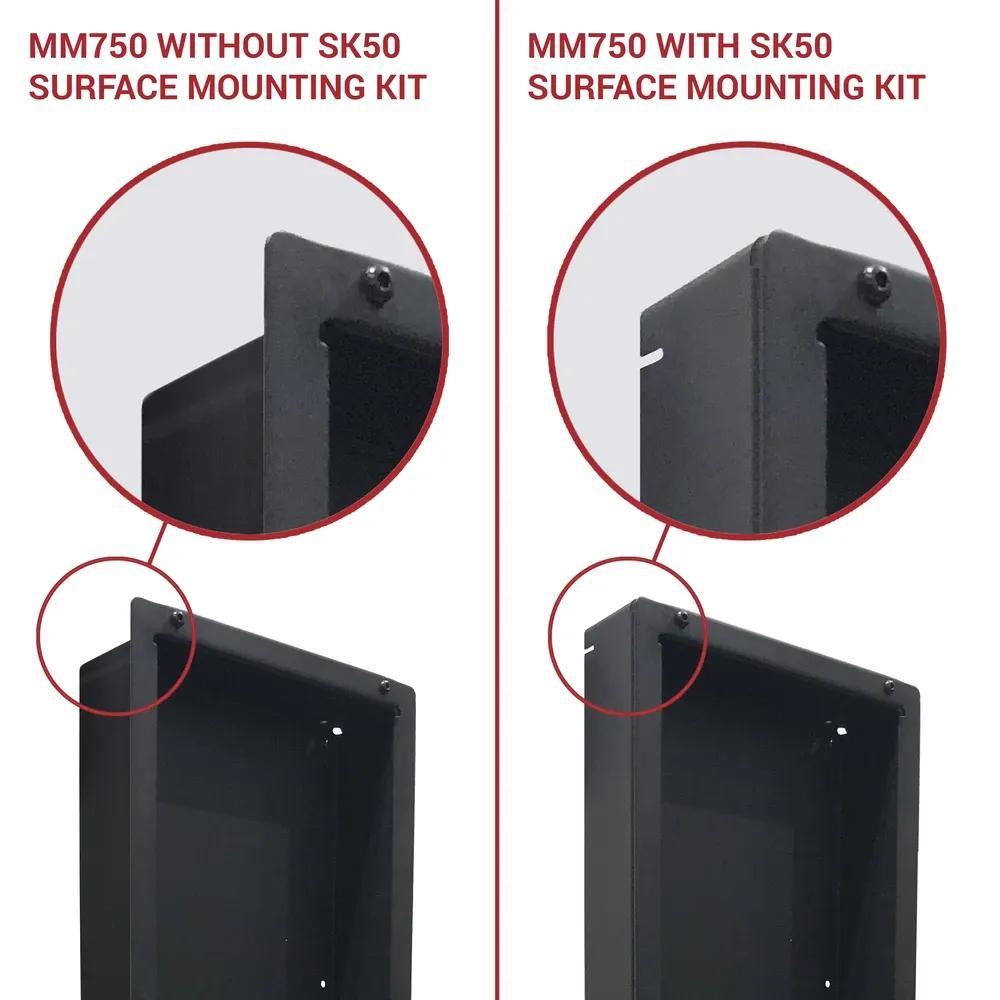

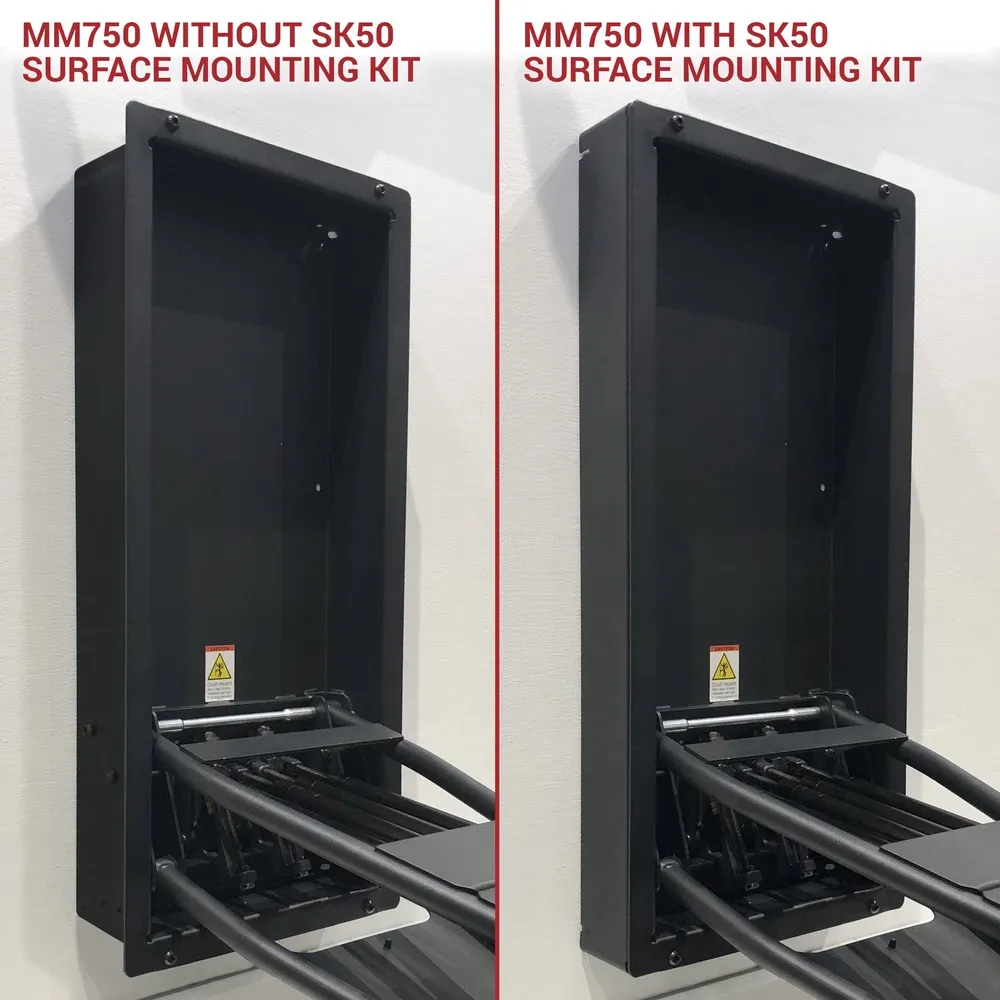

  • Attached Recess Box For optional 1.8" Flush-To-Wall TV Storage
  • Off-The-Wall Distance: 17.5"(recessed)-24"(surface mounted)
  • Reaches Studs Up to 24" Apart
  • Tested and Meets UL Safety Standards

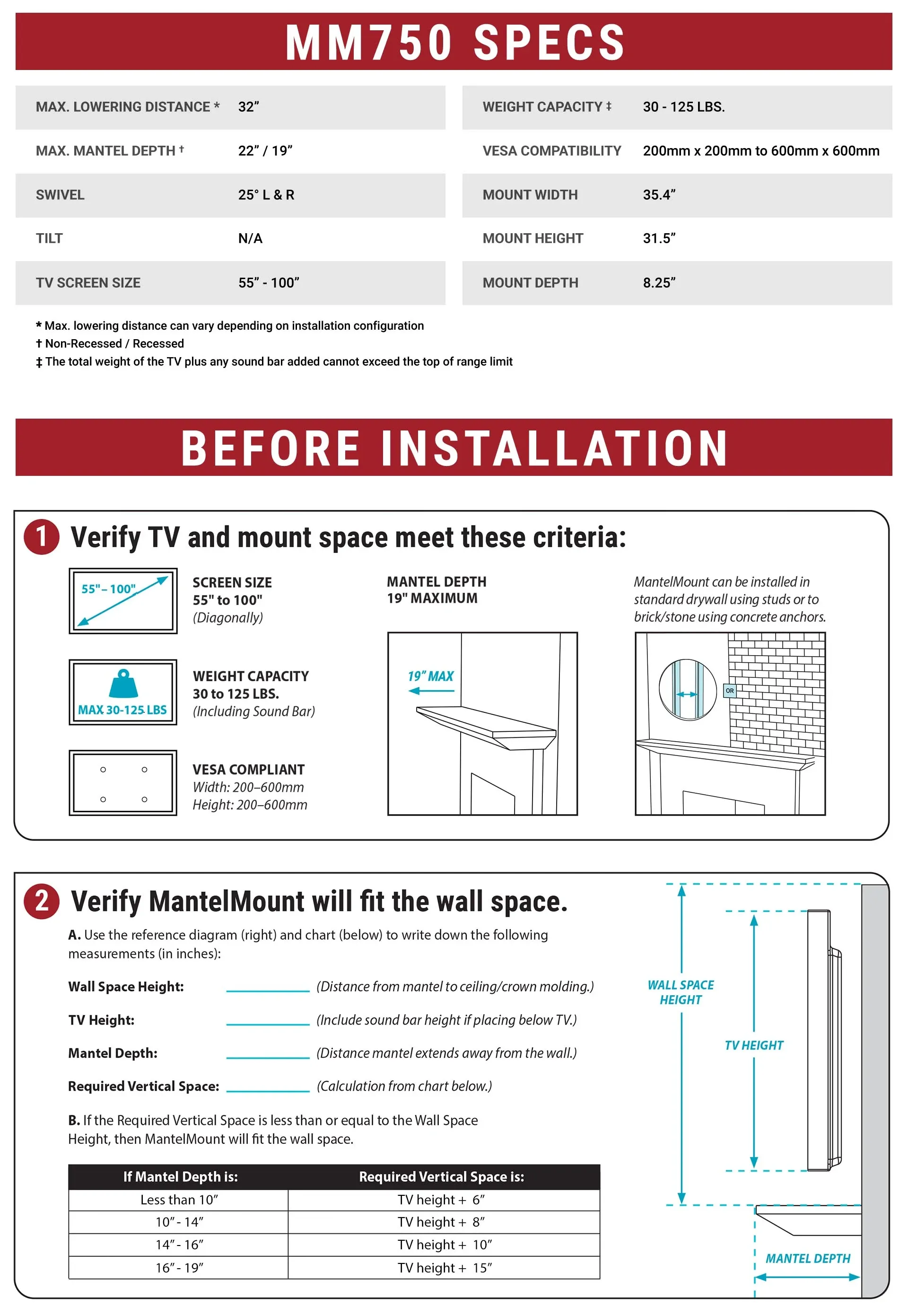

Spec Sheet

Specs
